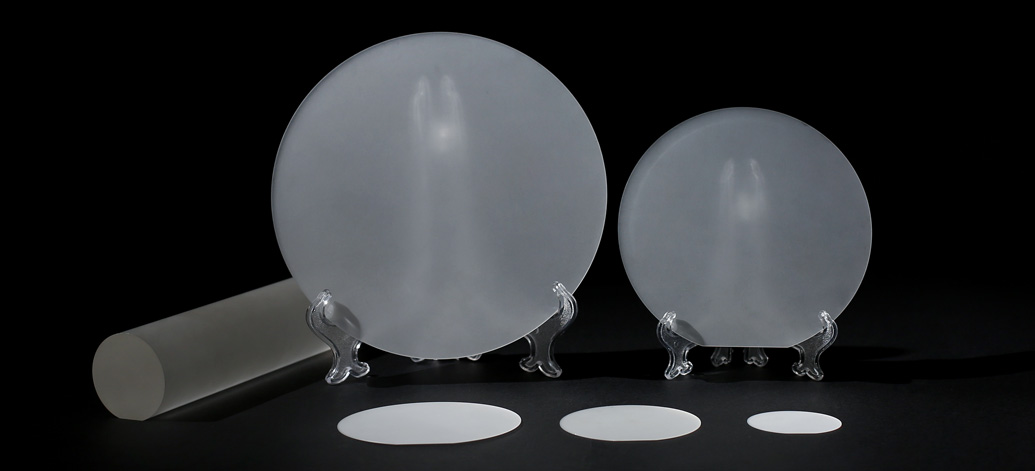

定制化蓝宝石晶片

Name: 定制化蓝宝石晶片
Brand: CRYSCORE OPTOELECTRONIC LIMITED

除了C面（0001）、A面（11-20）、M面（10-10）、R面（1-102）、N面（11-23）、V面（22-43）蓝宝石晶片外，晶芯光电还可以提供其他指定的晶向，例如：10-14晶向蓝宝石晶片和许多其他晶向晶片。所有的晶片都具有优良的材料性能。

抛光或未抛光表面，有或没有定位边，我们可以依据您的使用需要定制生产，以满足您在研究领域上的各种需求。

Specifications of 定制化蓝宝石晶片

Item	2-inch (10-14) 430μm Sapphire Wafers
Crystal Materials	99,999%, High Purity, Monocrystalline Al2O3
Grade	Prime, Epi-Ready
Surface Orientation	(10-14)
Diameter	50.8 mm +/- 0.1 mm
Thickness	430 μm +/- 25 μm
Single Side Polished	Front Surface	Epi-polished, Ra < 0.5 nm (by AFM)
(SSP)	Back Surface	Fine ground, Ra = 0.8 μm to 1.2 μm
Double Side Polished	Front Surface	Epi-polished, Ra < 0.5 nm (by AFM)
(DSP)	Back Surface	Epi-polished, Ra < 0.5 nm (by AFM)
TTV	< 10 μm
BOW	< 10 μm
WARP	< 10 μm
Cleaning / Packaging	Class 100 cleanroom cleaning and vacuum packaging,
	25 pieces in one cassette packaging or single piece packaging.

注：可依据客户需求定制生产任意晶向、厚度的蓝宝石晶片。
