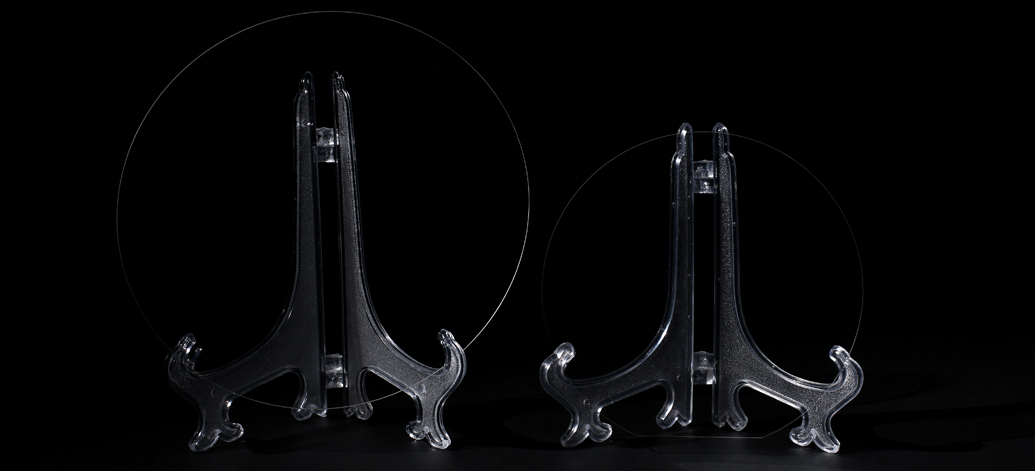

直径110mm蓝宝石窗口片

Name: 直径110mm蓝宝石窗口片
Brand: CRYSCORE OPTOELECTRONIC LIMITED

光学元件和红外透射光学窗口都采用优质的光学一级蓝宝石制成，它们广泛应用于航空航天、低温实验室观察窗口、高精度仪器等方面。

我们所有的蓝宝石窗口片在质量上都有严格的控制，在100级净化间洁净清洗和包装，表面光洁度的一致性非常好。我们坚持全年零逾期交货，质量零客户投诉。

Specifications of 直径110mm蓝宝石窗口片

Item	Dia. 110mm C-plane(0001) 500μm Sapphire Windows
Crystal Materials	99,999%, High Purity, Monocrystalline Al2O3
Grade	Prime, Epi-Polished
Surface Orientation	C-plane(0001)
Diameter	110.0 mm +/- 0.1 mm
Thickness	500 μm +/- 25 μm
Front Surface	Optical polished, Scratch / Dig < 10 / 5
Front Surface	Epi-polished, Ra < 0.2 nm (by AFM)
Back Surface	Optical polished, Scratch / Dig < 10 / 5
Back Surface	Epi-polished, Ra < 0.2 nm (by AFM)
TTV	< 20 μm
BOW	< 20 μm
WARP	< 20 μm
Cleaning / Packaging	Class 100 cleanroom cleaning and vacuum packaging, single piece packaging.

注：可依据客户需求定制生产任意晶向、厚度的蓝宝石窗口片。
