2英寸图案化蓝宝石基板

Name: 2英寸图案化蓝宝石基板
Brand: CRYSCORE OPTOELECTRONIC LIMITED

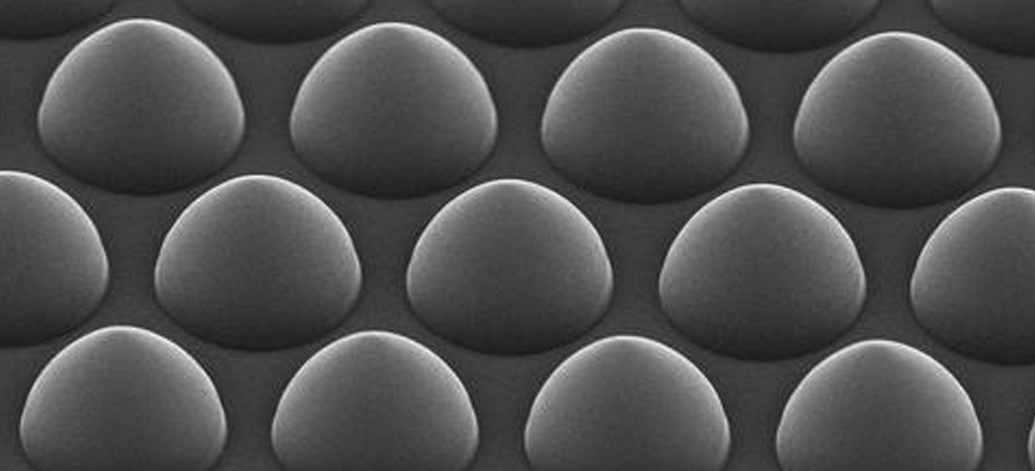

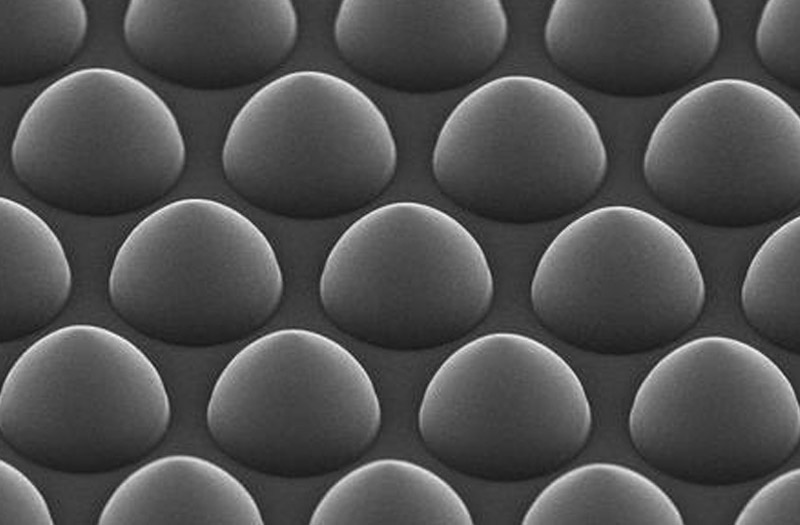

PSS是在蓝宝石衬底上设计、制造特定的纳米级微结构图案，通过生长和刻蚀的方式，控制LED光输出的形式（蓝宝石衬底上的凹凸图案会产生光散射或折射效应，从而提高光的提取率）。

同时，在图案化蓝宝石衬底上生长GaN薄膜将产生横向外延效应，减少GaN与蓝宝石衬底之间的间隙缺陷，提高外延质量以及提高LED内部量子效率和光提取效率。

Specifications of 2英寸图案化蓝宝石基板

Item	2-inch C-plane(0001) 430μm Pattern Sapphire Substrate
Crystal Materials	99,999%, High Purity, Monocrystalline Al2O3
Grade	Prime, Epi-Ready
Surface Orientation	C-plane(0001)
Diameter	50.8 mm +/- 0.1 mm
Thickness	430 μm +/- 25 μm
Primary Flat Orientation	A-plane(11-20) +/- 0.2°
Primary Flat Length	16.0 mm +/- 1.0 mm
Pattern Specification	Diameter: 2.4 +/- 0.2 µm; Spacing: 0.6 +/- 0.2 µm; Depth: 1.5 +/- 0.15 µm
Pattern Specification	Diameter: 2.7 +/- 0.1 μm; Spacing: 0.3 +/- 0.1 μm; Depth: 1.7 +/- 0.15 μm
Front Surface	Epitaxial ready
Back Surface	Fine ground, Ra = 0.8 μm to 1.2 μm
Laser Marking	Front side or Back side
TTV	< 10 μm
BOW	< 10 μm
WARP	< 10 μm
Cleaning / Packaging	Class 100 cleanroom cleaning and vacuum packaging,
Cleaning / Packaging	25 pieces in one cassette packaging or single piece packaging.
