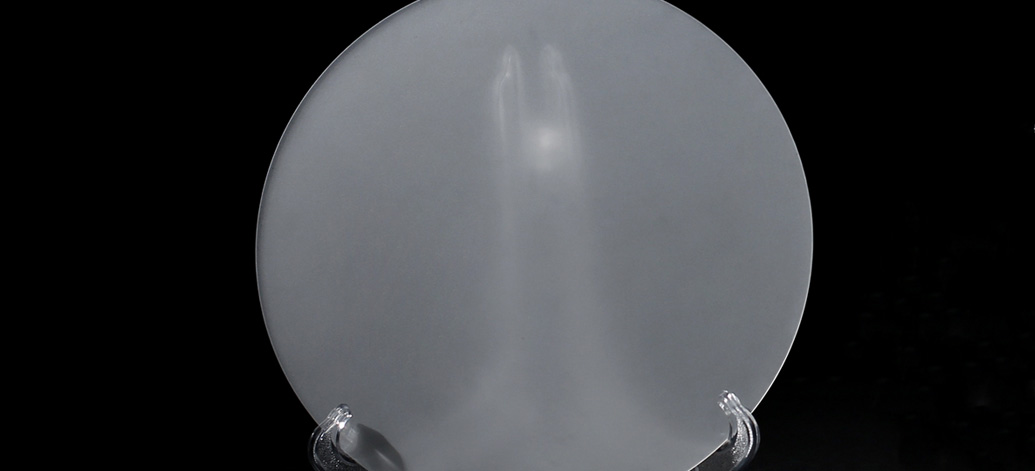

6英寸C面（0001）蓝宝石晶片

Name: 6英寸C面（0001）蓝宝石晶片
Brand: CRYSCORE OPTOELECTRONIC LIMITED

基于蓝宝石技术的不断升级和应用市场的快速扩张，4英寸和6英寸基片由于其固有的生产利用优势，将更多地被主流芯片企业采用。

晶芯光电提供各种蓝宝石晶片，无论是现货还是定制，都可以满足您的各种应用需求。Epi-Ready级蓝宝石晶片没有灰尘、颗粒、气孔、划痕或其他缺陷。所有的晶片都可以通过标签上标记的编号进行追溯。

Specifications of 6英寸C面（0001）蓝宝石晶片

Item	6-inch C-plane(0001) 1300μm Sapphire Wafers
Crystal Materials	99,999%, High Purity, Monocrystalline Al2O3
Grade	Prime, Epi-Ready
Surface Orientation	C-plane(0001)
	C-plane off-angle toward M-axis 0.2 +/- 0.1°
Diameter	150.0 mm +/- 0.2 mm
Thickness	1300 μm +/- 25 μm
Primary Flat Orientation	A-plane(11-20) +/- 0.2°
Primary Flat Length	47.0 mm +/- 1.0 mm
Single Side Polished	Front Surface	Epi-polished, Ra < 0.2 nm (by AFM)
(SSP)	Back Surface	Fine ground, Ra = 0.8 μm to 1.2 μm
Double Side Polished	Front Surface	Epi-polished, Ra < 0.2 nm (by AFM)
(DSP)	Back Surface	Epi-polished, Ra < 0.2 nm (by AFM)
TTV	< 25 μm
BOW	< 25 μm
WARP	< 25 μm
Cleaning / Packaging	Class 100 cleanroom cleaning and vacuum packaging,
	25 pieces in one cassette packaging or single piece packaging.

注：可依据客户需求定制生产任意晶向、厚度的蓝宝石晶片。
