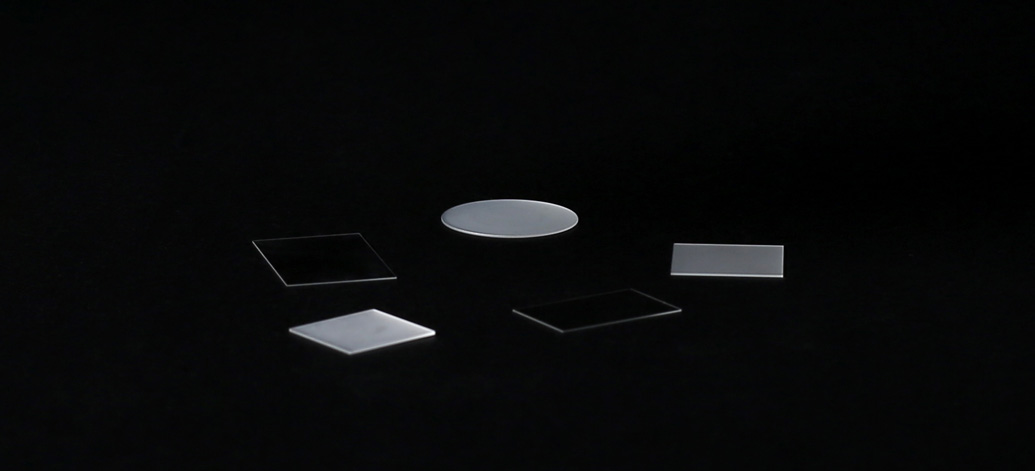

10mm x 10mm蓝宝石窗口片

Name: 10mm x 10mm蓝宝石窗口片
Brand: CRYSCORE OPTOELECTRONIC LIMITED

蓝宝石视窗广泛应用于医学、通信、激光、红外、电子、测量仪器、军事、航空航天等高科技行业。典型应用包括气体和空气监测器和分析仪、传感器和探测器、视口、覆盖窗口、条形码阅读器和其他光学应用。

晶芯光电可提供涂层和非涂层高品质蓝宝石窗口片。

Specifications of 10mm x 10mm蓝宝石窗口片

Item	10mm x 10mm C-plane(0001) 500μm Sapphire Windows
Crystal Materials	99,999%, High Purity, Monocrystalline Al2O3
Grade	Prime, Epi-Polished
Surface Orientation	C-plane(0001)
Size	10.0 mm +/- 0.05 mm x 10.0 mm +/- 0.05 mm
Thickness	500 μm +/- 25 μm
Front Surface	Optical polished, Scratch / Dig < 10 / 5
Front Surface	Epi-polished, Ra < 0.2 nm (by AFM)
Back Surface	Optical polished, Scratch / Dig < 10 / 5
Back Surface	Epi-polished, Ra < 0.2 nm (by AFM)
TTV	< 5 μm
BOW	< 5 μm
WARP	< 5 μm
Cleaning / Packaging	Class 100 cleanroom cleaning and vacuum packaging, single piece packaging.

注：可依据客户需求定制化生产任意晶向、厚度的蓝宝石窗口片。
