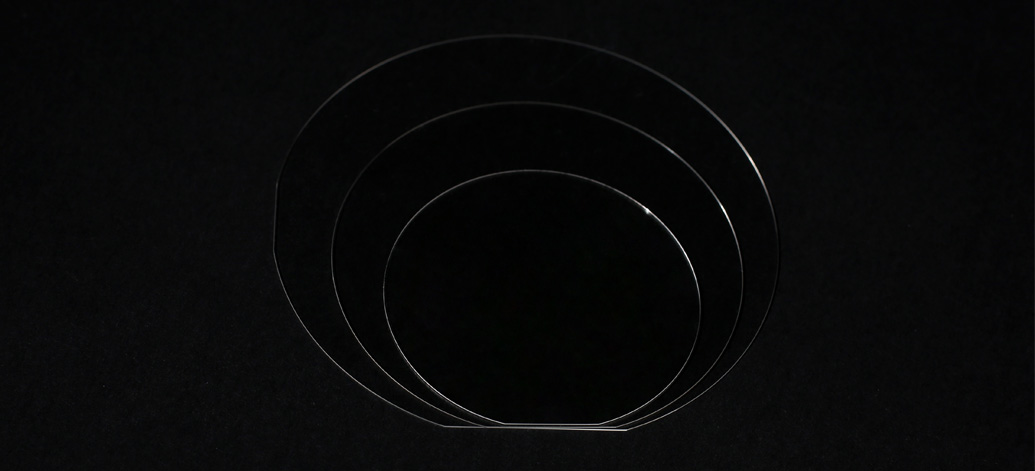

其他圆形蓝宝石窗口片

Name: 其他圆形蓝宝石窗口片
Brand: CRYSCORE OPTOELECTRONIC LIMITED

蓝宝石窗口具有优异的化学性能，在整个光学行业以及测量和分析仪器领域都有广泛的应用。广泛用于扫描窗口、高压系统、高真空系统、红外监视系统和等离子系统。

由于蓝宝石是一种双折射材料，在某些光学和传感器应用要求使用C-plane（0001）蓝宝石材料。晶芯光电也可依据客户的要求，提供定制化的蓝宝石窗口。

Specifications of 其他圆形蓝宝石窗口片

Item	Other Round Sapphire Windows
Crystal Materials	99,999%, High Purity, Monocrystalline Al2O3
Grade	Prime, Epi-Polished
Orientation	C-plane(0001) or any orientation
Diameter	Dia. 3.5 mm to 290 mm
Thickness	0.18 mm to 30 mm or any thickness
Front Surface	Optical polished, Scratch / Dig < 10 / 5
Front Surface	Epi-polished, Ra < 0.2 nm (by AFM)
Back Surface	Optical polished, Scratch / Dig < 10 / 5
Back Surface	Epi-polished, Ra < 0.2 nm (by AFM)
Cleaning / Packaging	Class 100 cleanroom cleaning and vacuum packaging, single piece packaging.

注：可提供任意晶向、厚度定制化的蓝宝石窗口片。
