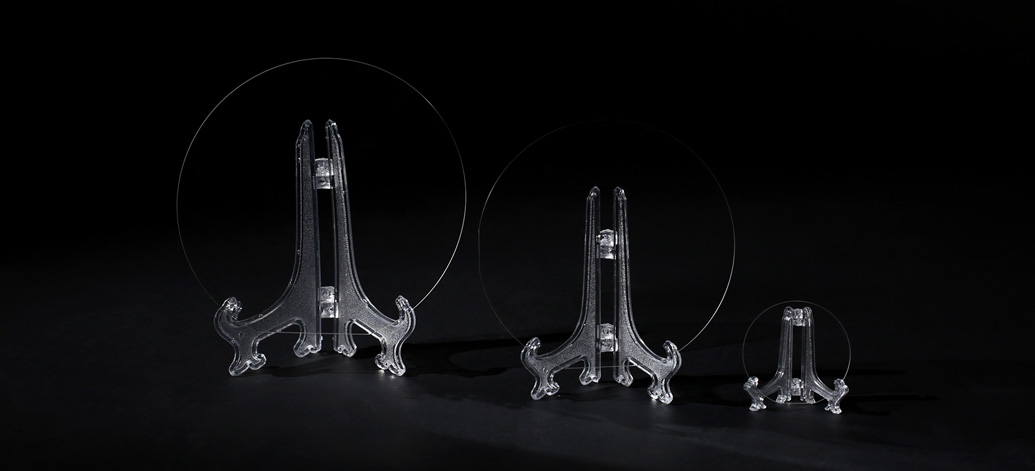

直径0.5英寸蓝宝石窗口片

Name: 直径0.5英寸蓝宝石窗口片
Brand: CRYSCORE OPTOELECTRONIC LIMITED

与玻璃窗口片相比，蓝宝石光学窗口片具有优异的耐磨性、韧性和抗断裂性。

我们生产的蓝宝石窗口片是通过Kyropoulos法生长而成的99.999%高纯度蓝宝石晶体。我们还可以提供加工服务，例如：根据客户要求进行表面抛光、倒角、激光切割、加减涂层定制化生产蓝宝石窗口片。

Specifications of 直径0.5英寸蓝宝石窗口片

Item	0.5-inch C-plane(0001) 430μm Sapphire Windows
Crystal Materials	99,999%, High Purity, Monocrystalline Al2O3
Grade	Prime, Epi-Polished
Surface Orientation	C-plane(0001)
Diameter	12.7 mm +/- 0.1 mm
Thickness	430 μm +/- 25 μm
Front Surface	Optical polished, Scratch / Dig < 10 / 5
Front Surface	Epi-polished, Ra < 0.2 nm (by AFM)
Back Surface	Optical polished, Scratch / Dig < 10 / 5
Back Surface	Epi-polished, Ra < 0.2 nm (by AFM)
TTV	< 10 μm
BOW	< 10 μm
WARP	< 10 μm
Cleaning / Packaging	Class 100 cleanroom cleaning and vacuum packaging, single piece packaging.

注：可提供任意晶向、厚度定制化的蓝宝石窗口片。
