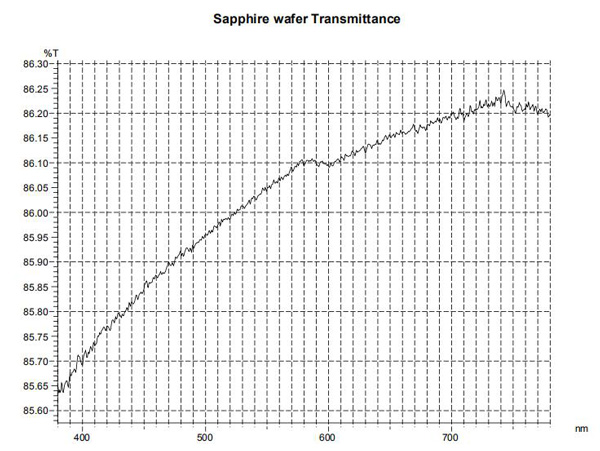

蓝宝石在0.20-5.50波长范围内具有较好的透光性,红外透过率随温度变化不大。蓝宝石在380~780nm范围内,透过率大于85%。
晶芯光电生产的圆形蓝宝石窗口片具有强度高、硬度高、耐高温磨料、耐腐蚀性好、透光性好、电绝缘性能好等一系列优良特性。我们能供应的最大直径可达290毫米。
Crystal Materials | 99,999%, High Purity, Monocrystalline Al2O3 | |
Grade | Prime, Epi-polished | |
Orientation | C-plane(0001) or any orientation | |
Diameter | Dia. 3.5 mm to 290 mm | |
Thickness | 0.18 mm to 30 mm or any thickness | |
Single Side Polished | Front Surface | Epi-polished, Ra < 0.2 nm (by AFM) |
(SSP) | Back Surface | Fine ground, Ra = 0.8 μm to 1.2 μm |
Double Side Polished | Front Surface | Epi-polished, Ra < 0.2 nm (by AFM) |
(DSP) | Back Surface | Epi-polished, Ra < 0.2 nm (by AFM) |
Cleaning / Packaging | Class 100 cleanroom cleaning and vacuum packaging, single piece packaging |
注:可提供任意晶向和厚度的定制化蓝宝石窗口片。
